ZONESTAR
5 PCS Nema17 Stepper Motor 1.8 degree 2 phase 4 Wire Height 22 34 40mm With Cable
5 PCS Nema17 Stepper Motor 1.8 degree 2 phase 4 Wire Height 22 34 40mm With Cable
Regular price
$49.00 USD
Regular price
$59.00 USD
Sale price
$49.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Name： NEMA 17 Stepping Motor
Number of phase： 2
Inductance resistance： 100MΩmin (500V)
Port of wires： 6 pins female PH2.0
Step Angle： 1.8°
Number of Lead wire : 4
Insulation class： Class B (130°)
|
OPTION |
W(mm) |
X(mm) |
Y(mm) |
L(mm) |
Rated Current(@12V) |
Detent torque |
|
42M-L40-S16 |
42 |
2 |
16 |
40 |
1.5A |
2.6kgf.cm |
|
42M-L40-S23 |
42 |
2 |
23 |
40 |
1.5A |
2.6kgf.cm |
|
42M-L34-S16 |
42 |
2 |
16 |
34 |
1.2A |
1.6kgf.cm |
|
42M-L34-S23 |
42 |
2 |
23 |
34 |
1.2A |
1.6kgf.cm |
|
42M-L22-S23 |
42 |
2 |
23 |
22 |
1.0A |
1.2kgf.cm |

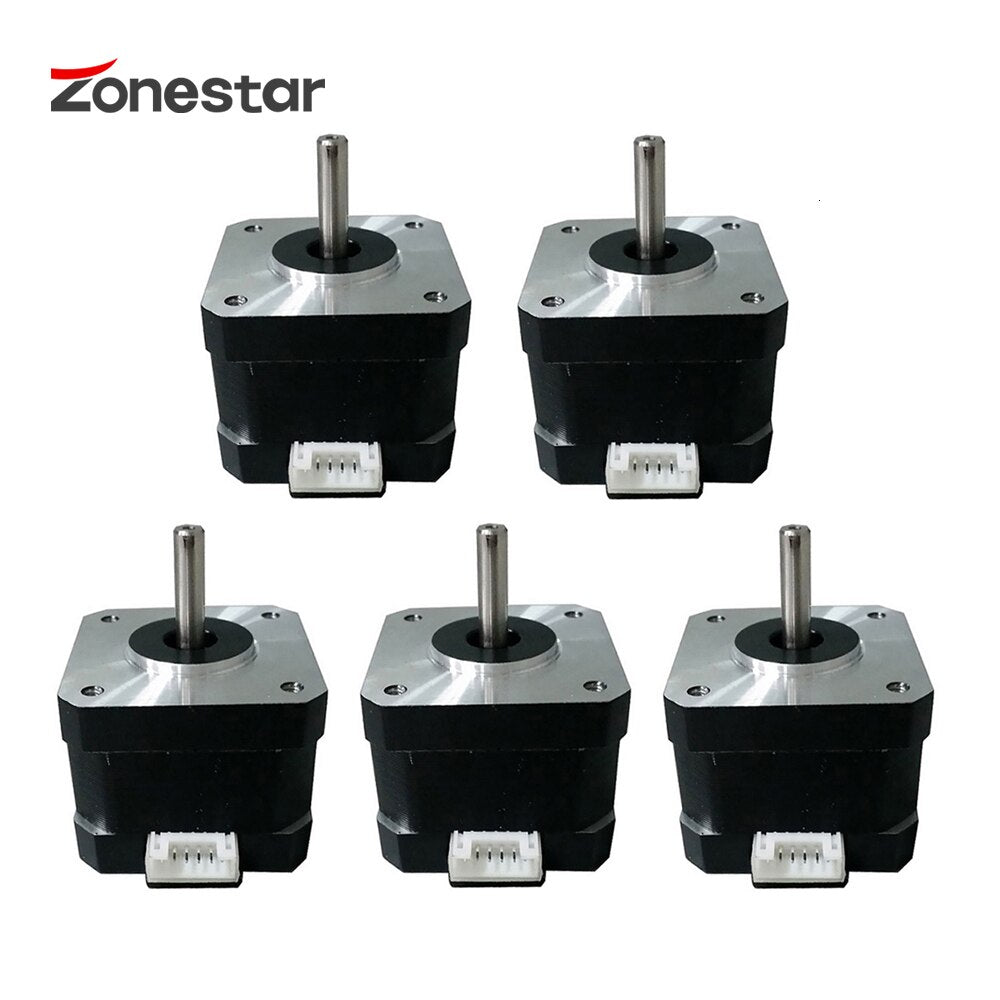

1. 5x Nema17 Stepping Motors
2. 5x Motor wire (*)
* Motor Wire:
Length: 1 meter
Connector: XH-4Pin to control board, PH-6Pin to motor
